Low Voltage Switchgear & Motor Control Center

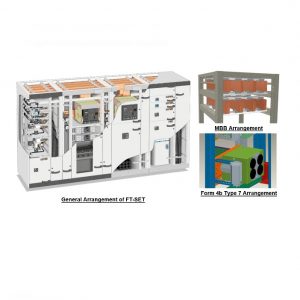

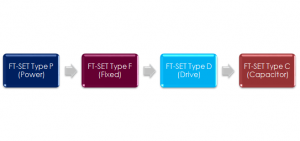

Following versions are available in FT-SET Product Range:

FT-SET type P (Power)

FT-SET Type P:

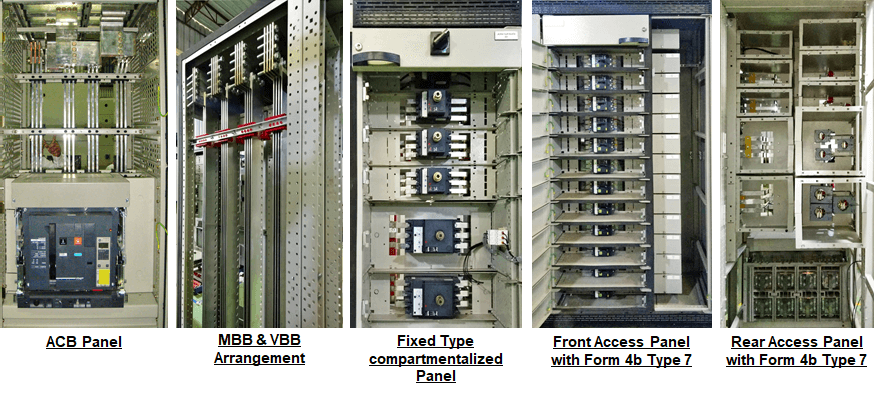

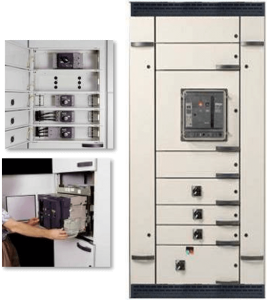

Power distribution, FT-SET using ACB, MCCB & MCB.

Short circuit withstand
 Up to 100 kA/1s, 220kA peak.
 Main horizontal busbar rating Up to 6300A
 Distribution vertical busbar Up to 3200A
 Forms 1 / 2b / 3b / 4b upto Type 7
IP 20 / 31 / 42 / 54



FT-SET type F (Fixed)

 FT-SET Type F:

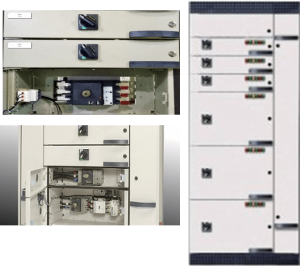

For Fixed-type Motor control (MCC) applications, using motor protection & control devices

Short circuit withstand Up to 100kA/1s, 220kA peak
 Main horizontal busbar rating Up to 6300A
 Distribution vertical busbar Up to 3200A
 Forms 1 / 2b / 3b / 4b upto Type 7
IP 20 / 31 / 42/ 54



FT-SET type D

FT-SET Type D:

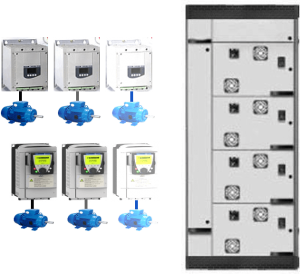

For variable speed/frequency drive & soft-starting motor applications.

Short circuit withstand Up to 100 kA/1s, 220kA peak.
 Main horizontal busbar rating Up to 6300A
 Distribution vertical busbar Up to 3200A
 Forms 1 / 2b / 3b / 4b Type 7
IP 20 / 31 / 42 / 54





FT-SET type C

FT-SET Type C:

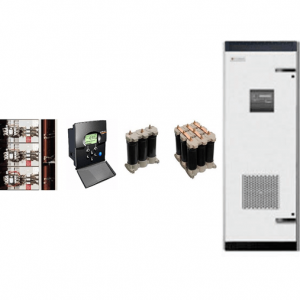

For Power Factor Correction.

Short circuit withstand up to 85 kA/1s, 187kA peak.
 Main horizontal busbar rating up to 4000A
Maximum LV capacitor rating 530kVAR @ 400V
 Forms 1 / 2b
IP 20 / 31 / 42 / 54

Features:

  • IEC Compliances:  IEC 61439-1&2

        IEC 60529

        IEC 60947-2

  • Rated Insulation Voltage: 1000VAC

  • Rated Operating Voltage: 690VAC

  • Rated Frequency: 50/60 Hz

  • Earthing System:  TT-IT-TNS-TNC-TNCS

  • Degree of Pollution: 3

  • Cable Inlet: Top/Bottom

  • Access: Front/Rear

  • Panel Color: RAL7032

  • Paint Thickness: 80-100 micron

  • Salt Spray Test:1000 Hour

  • HVAC Sizing Tool: Available

  • Intelligent MCC : Available

  • Back to Back Installation: Possible

  • Arrangement of Draw-out/Plug-In MCCB: Available

  • Electrical Components Make: Schneider/Terasaki/ABB

Ingredients of FT-SET:

  1. MS Sheet imported from POSCO, South Korea.

  2. 99.99% pure Copper imported from Luvata, Malaysia.

  3. 99.99% pure Copper Cable from Indus Cables.

  4. Type Tested Imported Busbar Supports.
