Technical Specifications:

Rated voltage:

Upto 17.5 kV

Basic Insulation Level:

Upto 95 kV

Rated Short Time Breaking Current:

Upro 40kA

Rated Short Time Withstand Current:

Upto 40kA, 3s

Internal Arc Degree:

Class A FLR for 40kA, 1s

Busbars:

Upto 4000A with Forced Cooling

Dim (mm):

650/800/1000x1400x2200 (WxDxH)



Features:

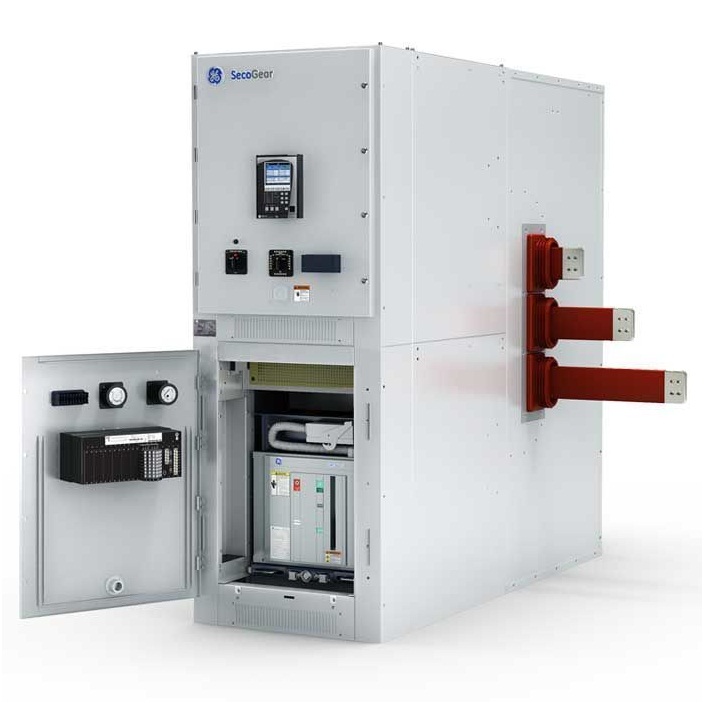

SecoGear by GE | Medium Voltage Switchgear Metal clad / Compartmentalized  upto 17.5 kv.

  • SecoGear is designed, assembled to meet applicable IEC standards and has been successfully type tested at DEKRA/KEMA by GE.
  • Suitable for all major industries including Transmission and Distribution (T&D), Oil & Gas, Automotive, Processing plants, Iron and Steel mills, Mining, Commercial buildings, etc.
  • Embedded pole vacuum circuit breaker with tulip contact.
  • Seismic testing according to UBC Zone 4 and GB Intensity 9.
  • Robust drawout mechanism
  • Automatic shutter system.
  • Digital control and protection.
  • All operation with doors or covers closed.
  • Earthing-switch with visible position.
  • All the mechanical interlocking according  to IEC standards.
  • Motorized drawout mechanism for remote connect and test position (optional).
