Technical Specifications:
| Rated Voltage: | Up to 690V AC or 600V DC |
| Rated Frequency: | 50/60 Hz |
| Rated Insulation voltage: | 1000V |
| Rated Current: a) Main Horizontal Busbar: b) Vertical Busbar: |
Up to 7600A 850 up to 1900A, 3 & 4 pole |
| Rated short time current: | Up to 100 kA for 1s |
| Peak withstand current: | up to 220 kA |
| Type tested: | IEC 61439-1&2 |
| Internal arc tests: | Internal arc tests: |
| Seismic withstand: | UBC, IEEE 344 |
| Protection class of Enclosure | IP30 (up to IP54 on request) |
| Dimension: (mm) | Width 400 to 1200
Depth 600,800,1200 Height 2000, 2200 |
Features:

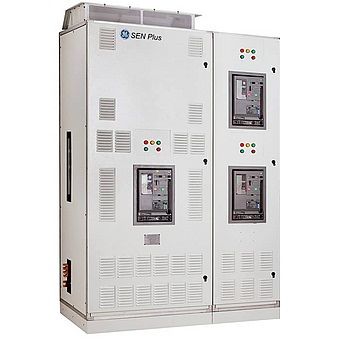

- SEN Plus by GE Low Voltage Switchgear & Motor Control Center
- Fully compartmentalized Design (up to form 4b on request).
- Withdrawable arrangement and Plug-in arrangement available.
- Ease in replacement of draw out units.
- Interchangeability of similar rated draw out units.
- Test position without opening the door of unit.
- Electrical and Mechanical interlocking.
- Provision for Padlocking.
- Cable termination access from front.
- Ensures safety and protection to operating personnel.
