Technical Specification:
| Rated voltage: | Upto 24 kV |
| Rated current: | 630A |
| Rated power frequency withstand voltage: | 50kV, 1min |
| Rated lighting impulses withstand voltage: | 125kV |
| Short Circuit: | 20 kA, 3s |
| Rated frequency: | 50/60Hz |
| Internal Arc Degree: | a) Cable Compartment: 20kA, 1s
b) Gas Tank: 20kA, 1s |
| IP Degree: | a) Enclosure: IP3X
b) Gas Tank: IP67 |
Features:

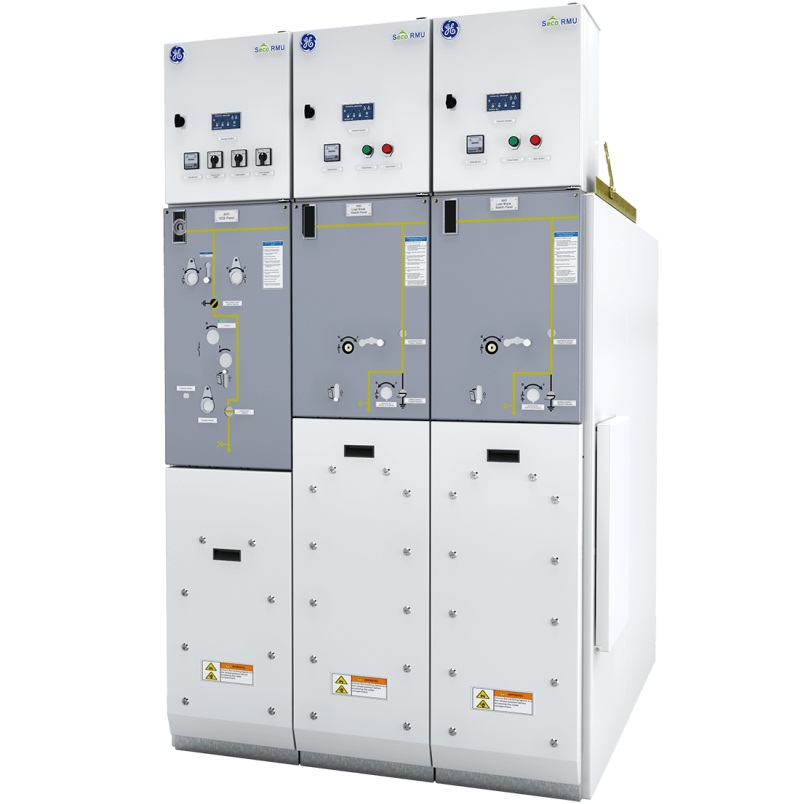

Medium Voltage Gas Insulated Ring Main Unit
- SER-K Load Switch Unit
- SER-T Load Switch-fuse Combined Unit
- SER-V Vacuum Circuit Breaker Unit
- SER-B Bus Tie Unit
- SER-V+SER-C1 Vacuum Circuit Breaker & Bus Tie Unit
- SER-C Bus Bar Lift Unit
- SER-M Metering Unit
- SER-PT PT Unit
- SER-KPT Disconnector & PT Unit
